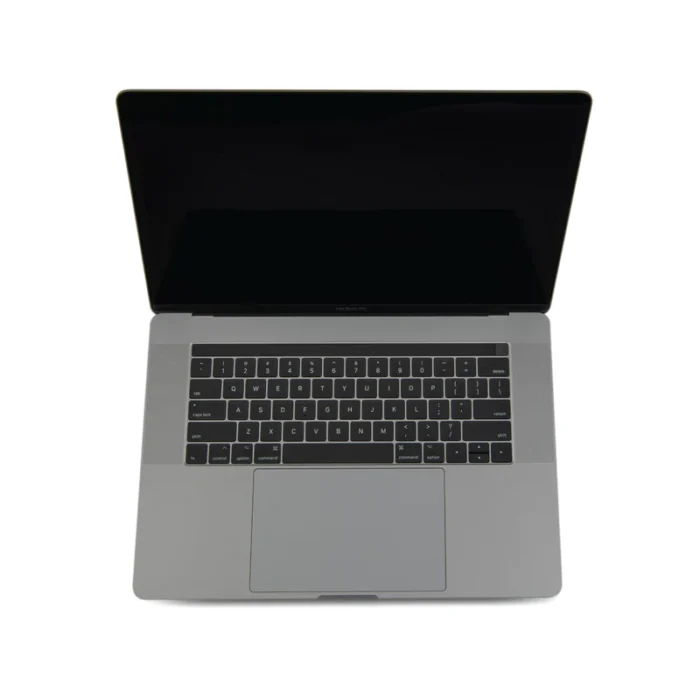

MacBook Pro (15-inch, 2017)

Touch Bar

• Touch Bar with integrated Touch ID sensor

Display

• Retina display
• 15.4-inch (diagonal) LED-backlit display with IPS technology; 2880-by-1800 native resolution at 220 pixels per inch with support for millions of colors
• Supported scaled resolutions:
  • 1920 by 1200
  • 1680 by 1050
  • 1280 by 800
  • 1024 by 640
• 500 nits brightness
• Wide color (P3)

Processor

• 2.8GHz
  2.8GHz quad-core Intel Core i7, Turbo Boost up to 3.8GHz, with 6MB shared L3 cache
  Configurable to 3.1GHz quad-core Intel Core i7, Turbo Boost up to 4.1GHz, with 8MB shared L3 cache

Storage¹

• 256GB
  256GB PCIe-based onboard SSD
  Configurable to 512GB, 1TB, or 2TB SSD

Memory

• 16GB of 2133MHz LPDDR3 onboard memory

Graphics

• 2.8GHz
  Radeon Pro 555 with 2GB of GDDR5 memory and automatic graphics switching
  Intel HD Graphics 630
  Configurable to Radeon Pro 560 with 4GB of GDDR5 memory

Charging and Expansion

Four Thunderbolt 3 (USB-C) ports with support for:

• Charging
• DisplayPort
• Thunderbolt (up to 40 Gbps)
• USB 3.1 Gen 2 (up to 10 Gbps)

Keyboard and Trackpad

• Full-size backlit keyboard with:
  • 64 (U.S.) or 65 (ISO) keys including 4 arrow keys
  • Touch Bar with integrated Touch ID sensor
  • Ambient light sensor
  • Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Wireless

• Wi-Fi
  802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
• Bluetooth
  Bluetooth 4.2 wireless technology

Camera

• 720p FaceTime HD camera
